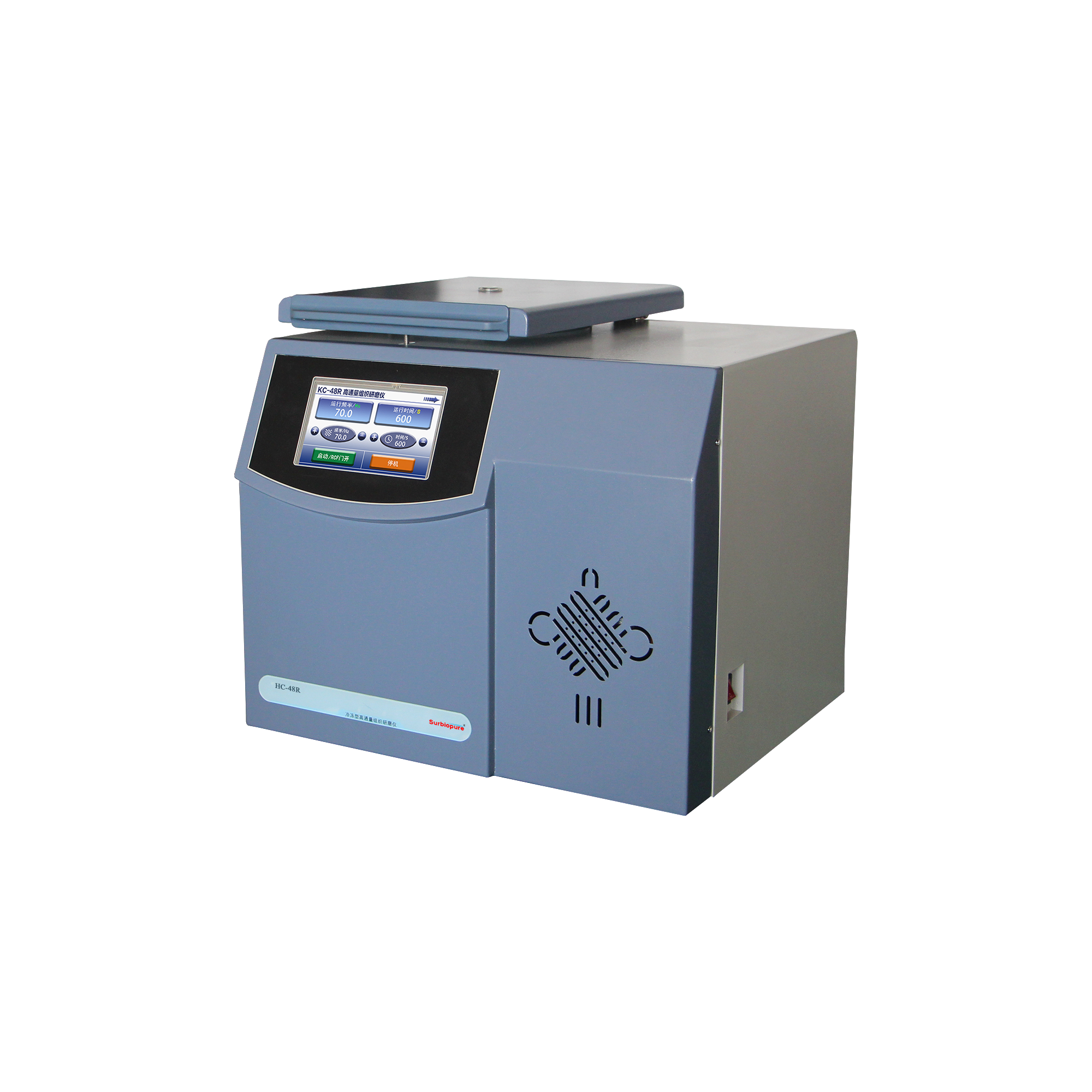

HC-48R High-throughput tissue freezing grinder
Product Name: High-Throughput Tissue Grinder
Dimensions: 470mm × 520mm × 520mm
Product Introduction:
The HC-48R Frozen Grinder is a fast, efficient, and multi-tube consistent system.
It can extract and purify raw DNA, RNA, and proteins from any source, including
soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, and paleont-
ological specimens. This high-throughput frozen tissue grinder offers superior
performance, with customizable grinding temperatures that effectively inhibit
nucleic acid degradation and preserve protein activity.
Similar products
◎Cooling temperature: -20℃ to 40℃, efficiently protects the stability of samples with high temperature requirements;
◎Vertical grinding: Vertical reciprocating oscillating ball mill grinding, thoroughly crushes samples;
◎High throughput: Efficient and rapid operation can handle up to 48 samples at a time within 1 minute, saving time and effort, with minimal inter-batch and intra-batch variation, resulting in higher protein yield and longer nucleic acid fragments.
◎High efficiency: Sample processing completed within 2 minutes, unique high-frequency short-duration grinding protects proteins from damage, achieving optimal extraction;
◎No cross-contamination: Sample tubes remain in a fully closed state during the crushing process, and disposable centrifuge tubes and beads can be used. Samples are completely retained in the tube, avoiding cross-contamination between samples and external contamination.
◎Safe and reliable: Safety lock provides full protection, unique anti-loosening locking device ensures safer use. Features a classic mechanical push-rod door lock, durable; stainless steel inner cavity protective sleeve;
◎Good reproducibility: Same tissue sample set with the same program yields consistent grinding effects; short working time prevents sample temperature from rising;
◎Easy operation: Built-in program controller allows for setting of grinding time, rotor vibration frequency, and other parameters;
◎Good stability: Employs a three-dimensional vibration mode of vertical and horizontal movements for more thorough grinding and better stability; during instrument operation, noise is less than 70dB, avoiding interference with other experiments or instruments.
Application range:
The KC-48R Frozen Grinder is a fast, efficient, multi-tube consistent system. It can extract and purify original DNA, RNA, and proteins from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleobiological specimens, etc.). This high-throughput frozen tissue grinder excels in performance, with customizable grinding temperatures that effectively inhibit nucleic acid degradation while preserving protein activity.
1. Suitable for grinding various plant tissues, including samples of roots, stems, leaves, flowers, fruits, and seeds;
2. Suitable for grinding various animal tissues, including samples of brain, heart, lungs, stomach, liver, thymus, kidneys, intestines, lymph nodes, muscle, and bone;
3. Suitable for grinding samples of fungi and bacteria;
4. Suitable for grinding samples for analysis and detection of food and pharmaceutical ingredients;
5. Suitable for grinding volatile samples, including coal, oil shale, and wax products;
6. Suitable for grinding plastic and polymer samples, including PE, PS, textiles, and resins.
